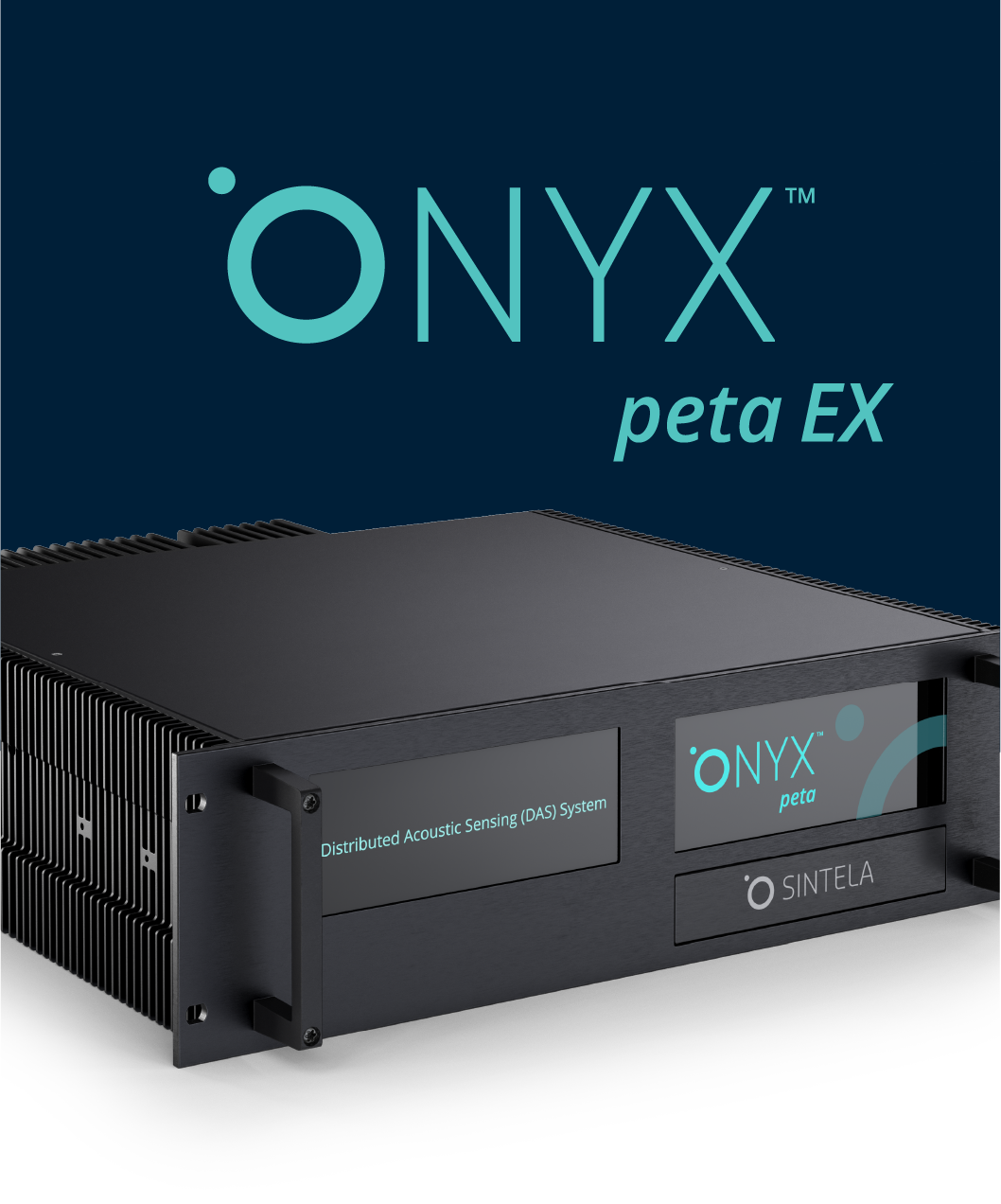

INTRODUCING
THE NEXT GENERATION FIBER SENSING SOLUTION

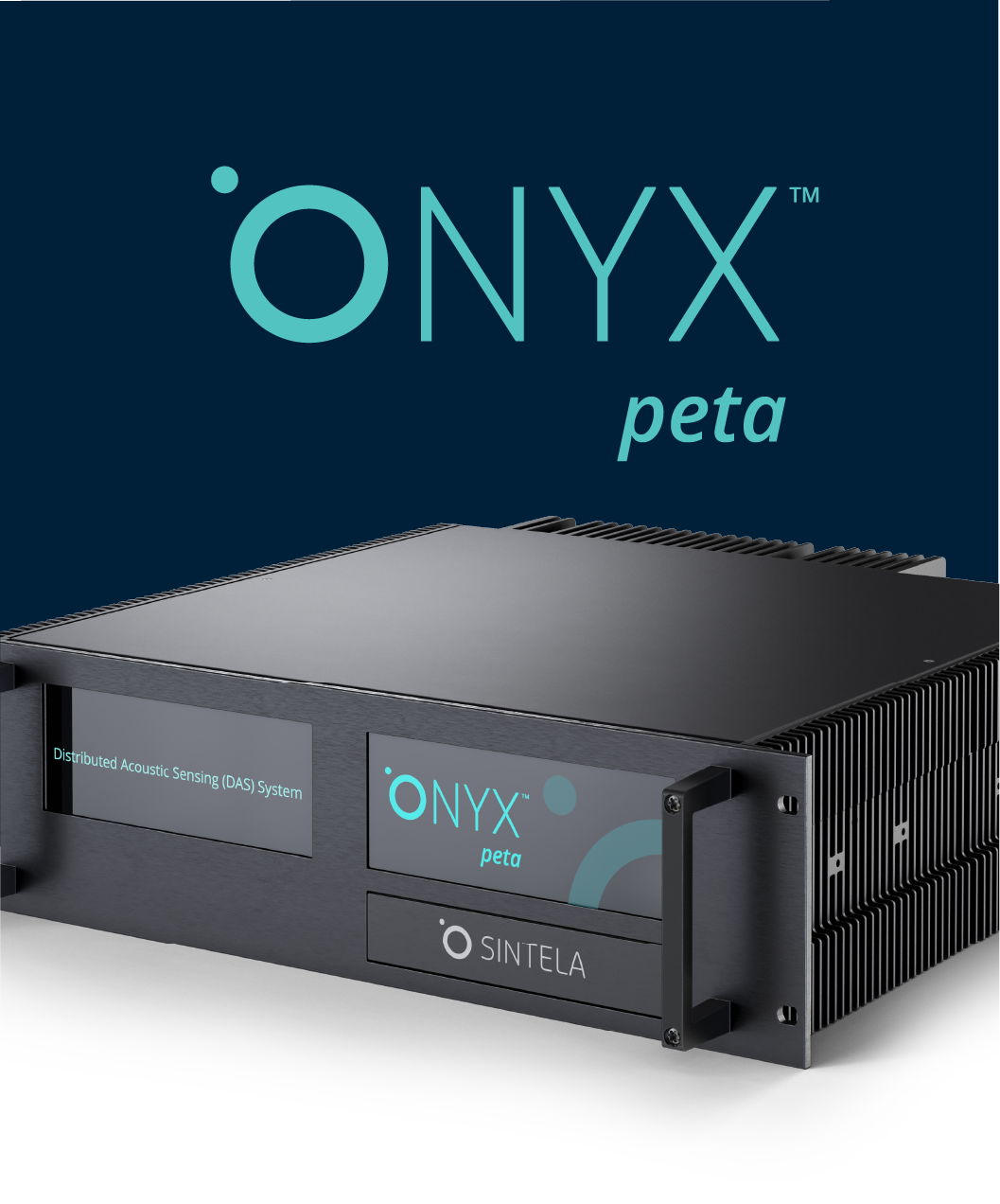

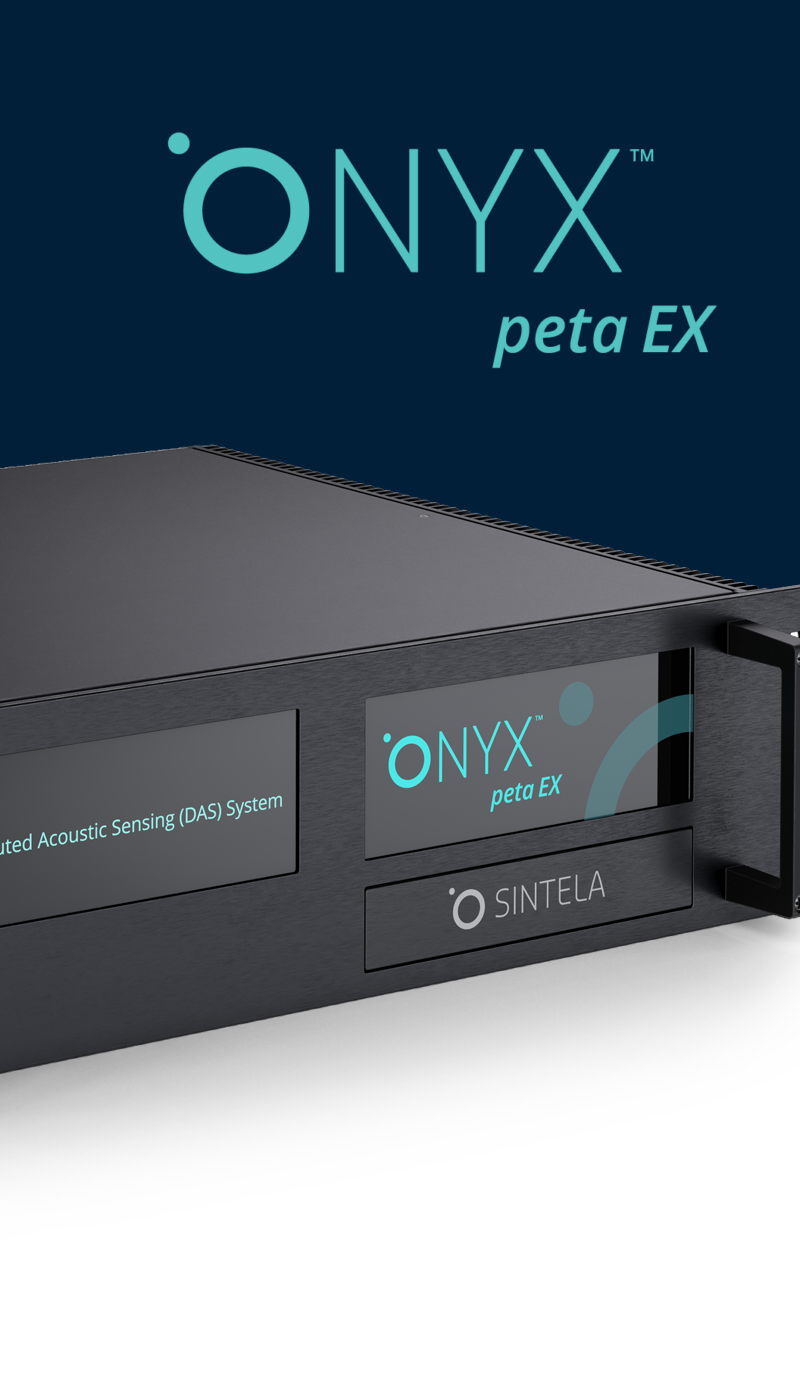

ONYXTM our flagship platform now delivers a customizable, simple and cost-effective all-in-one solution for your distributed fiber-optic sensing needs.
Explore the range
A step change
Designed for industry
Mining Operations Monitoring
Road Network Monitoring
Geophysical Monitoring
Subsea Cable Monitoring
Border & Perimeter Monitoring
National Infastructure
Oil & Gas Pipelines Monitoring
Rail Networks Monitoring
Software
Operating System Software (OSS)
Powering precision, enabling integration — the intelligent core of the Onyx Sensing Unit
The OSS is responsible for the core firmware and software that controls the Onyx Sensing Unit (OSU). It manages real-time system operations, signal acquisition, data processing, and diagnostics. The software ensures the generation of high-quality, reliable data and supports seamless integration with third-party systems through robust, standards-based interfaces such as REST APIs, Modbus, and SNMP. Designed for performance and flexibility, the OSS enables efficient system configuration, monitoring, and remote management.
Full software control
Fully automated and optimized for each deployment with software defined acquisition sensing parameters such as pulse width, gauge length, sample rate and decimation factor.
Industry leading algorithms
Application specific detection and classification algorithms pre-loaded with hours of learning providing unrivalled levels of detection with low rates of nuisance alarm call outs.
Web based user Interface
Each ONYX™ unit incorporates its own web server providing the user with remote access from any browser on a secure intranet / internet connection. Full SAML integration for seamless integration into your organizations single source login.
Distributed architecture
ONYX™ has been designed around a fully distributed architecture eliminating single points-of-failure in multi-system networked deployments.
Auto setup with fiber monitoring
An automated installation process simplifies the setup, commissioning and testing stages of the ONYX™ implementation.
Open architecture
ONYX™ is an open system meaning that a customer can load and operate their own software upon the ONYX™ hardware if they prefer.
Software
Industry Application Software (IAS)
From data to decisions — custom interfaces that speak your operational language.
Application-Specific Software & User Interfaces
Sintela develops tailored software and bespoke user interfaces layered on top of the Operating System Software (OSS). These interfaces are designed to present acquired data in clear, actionable formats that align with each user's operational needs and concept of operations. The result is intuitive, application-specific visualisation that ensures critical insights are easy to understand and immediately usable—enabling faster, more effective decision-making.
A step change
Representing the next step in the evolution of Distributed Fiber Sensing, ONYX™ converts existing telecommunications fiber optic cable into a rich vibration, detection and ranging system.
By harnessing the power of quantitative data it accurately classifies and geolocates all moving objects and potential threats within 6 metres both in real time and historically, putting you in control to respond appropriately.
Developed by Sintela's global experts in Distributed Fiber Optic Sensing ONYX™ significantly improves performance and provides a future proof solution that can stand alone, integrate or be embedded into existing telecommunication and fiber systems.
Features
Quantitative measurements | ONYX™ is a fully coherent, phase-based DAS system which enables the use of sophisticated event classification algorithms to achieve a low nuisance alarm rate.
Standard 100km range | Two 50km fibers can be simultaneously monitored from a single ONYX™. Longer ranges are also available.
Industry leading sensitivity | Capable of resolving an axial strain of 1.5 pico-strain using standard single-mode optical fiber.
Integrated compact design | All the optical sensing components, electronics and processing hardware have been incorporated into one compact unit.
Small form factor | Using only 3U of rack space and weighing less than 17kg, ONYX™ is easy to transport and once installed has a small footprint.
Low power requirement | ONYX™ operates on just 100W, enabling it to be powered from utility power or from harvested energy supplies.
Laser safe | ONYX™ uses a Class 1 laser making it eye safe and inherently safe to use.
Trigger input and GNSS time synchronisation | ONYX™ accepts external triggers and can synchronise its clock to the Global Navigation Satellite System (GNSS) reference to ensure that highly accurate time stamped data is acquired and recorded.
Full software control | All the acquisition sensing parameters such as pulse width, gauge length, sample rate and decimation factor are software defined and can be quickly and easier changed to enable the optimum settings use in each deployment.
Industry leading algorithms | Based upon many decades worth of combined experience the Sintela team have developed a suite of application specific, detection and classification algorithms providing unrivalled levels of detection with low rates of nuisance alarm.
Web based user Interface | Each ONYX™ incorporates its own web server providing the user with remote web access to a modern user interface from any web browser on a secure intranet / internet connection.
Distributed architecture | ONYX™ has been designed around a fully distributed architecture eliminating single points-of-failure in multisystem networked deployments.
Automatic setup with fiber monitoring | An automated installation process simplifies the setup, commissioning and testing stages of the ONYX™ implementation.
Open architecture | ONYX™ is an open system meaning that a customer can load and operate their own software upon the ONYX™ hardware if they prefer.
Cyber Security | ONYX™ Sensing Unit are compliant with and tested against the Center for Internet Security (CIS) Benchmarks for cyber security vulnerability.
Reliability | Calculated using Telcordia SR-332, the predicted Mean Time Before Failure (MBTF) of ONYX™ is 15 years.
Conformance | ONYX™ conforms with FCC, CE, and RoHS standards
